Description

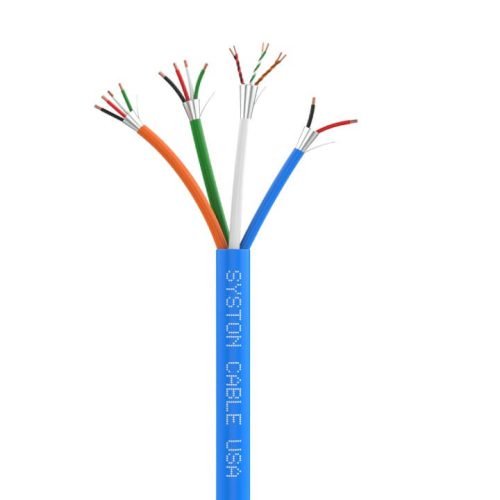

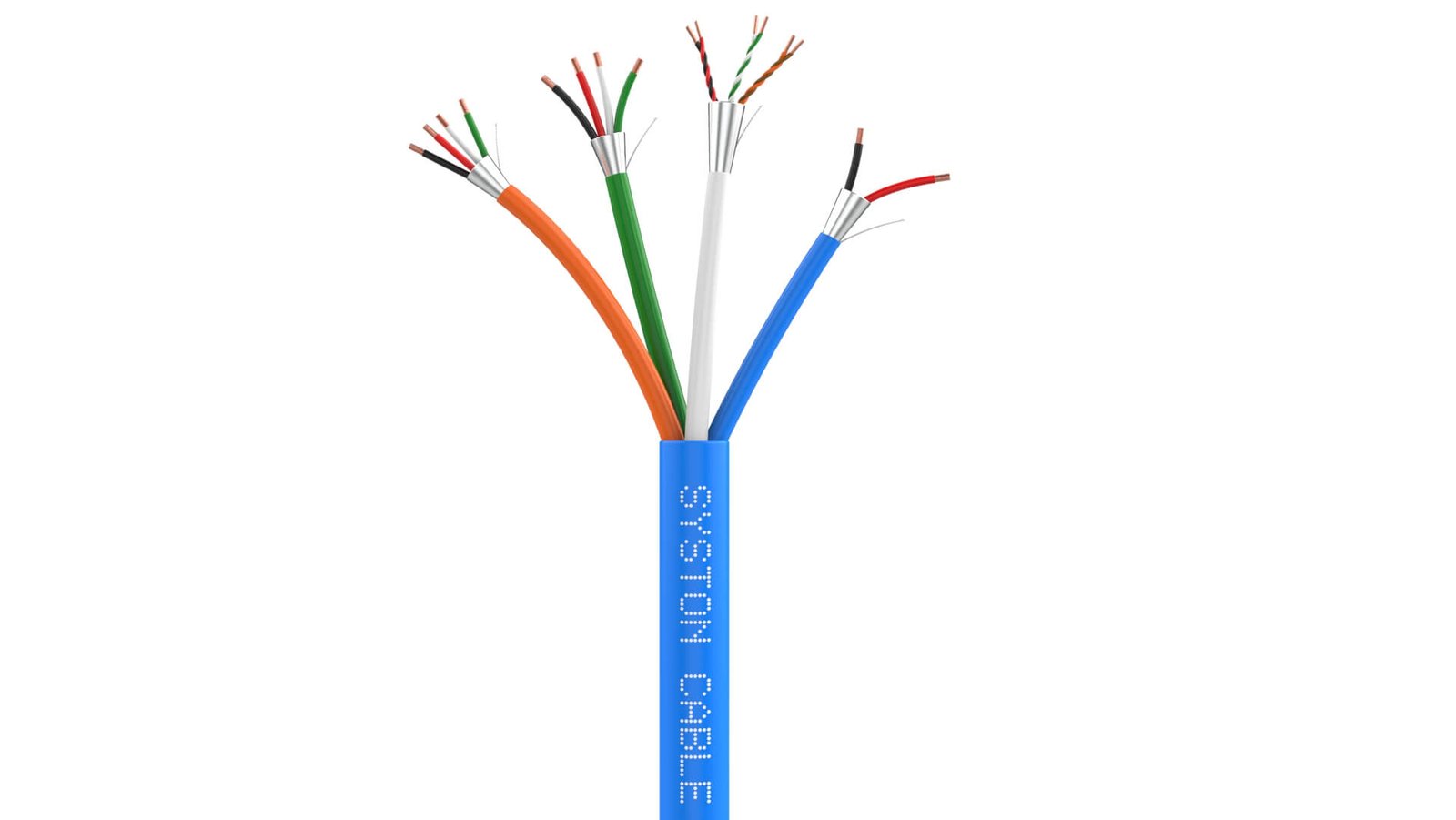

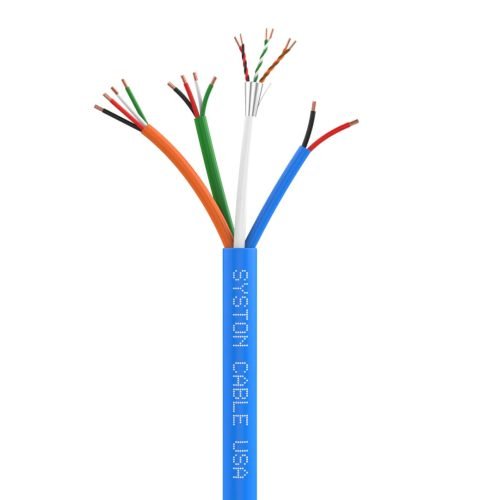

- Cable Description: Premium Access Control Composite Cable
- Four Conductors:
- Lock Power: 18/4C Copper Stranded OAS
- Card Reader: 22/3PR Copper Stranded OAS
- Door Contact: 22/2C Copper Stranded OAS
- Request to Exit: 22/4C Copper Stranded OAS
- Four Conductor Color code:
- Lock Power: Orange
- Card Reader: White
- Door Contact: Blue
- Request to Exit: Green
- Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant)
- Ripcord: Applied longitudinally under the jacket
- Jacket: Plenum PVC (Low Smoke, Flame Retardant & RoHS Compliant)
- Nominal Cable Diameter (in): 0.410
- Temperature Rating (°F)
Installation: +32 to +140 Storage & Operation: -4 to +167 - Lengths available: 500 ft
- Custom cable constructions, lengths, colors, and packaging are available.
With the wide variety of wires Syston Cable Technology carries, you are sure to find a Access Control Cable well-suited to even the most challenging application.
So, if you’re looking for a good quality and affordable cable for card reader/keypad, door contact, request to exit, and lock power device connectivity in a single cable and certified hazardous substance-free, fire-retardant, sunlight-resistant and easy to install with an outstanding tangle-free design and handy features like clear print legend and E-Z footage markings to make installation an absolute breeze, and suitable in a wide range of access control systems while also being cost-effective. Order yours now.
If you have any questions about our products or services, please feel free to contact us via our website or Facebook page.
